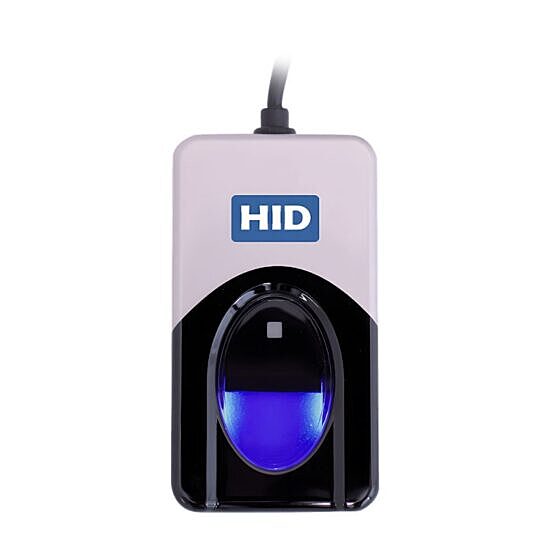

HID® DigitalPersona® 4500 Fingerprint Reader

HID® DigitalPersona® 4500 Fingerprint Reader

The HID DigitalPersona 4500 is a compact USB optical fingerprint reader designed for biometric authentication in desktop, shared-user and point-of-sale environments.

Its optical scanning technology provides high-quality fingerprint capture, while the silicone-coated scanning window helps accurately read a wide range of fingerprints, including dry, moist or rough fingerprints.

Simply place a finger on the reader and the device automatically captures and encrypts the fingerprint image for processing by compatible biometric software.

Key Features

• Optical fingerprint scanning technology

• High-quality 500 dpi fingerprint capture

• Compact desktop design

• USB 2.0 connectivity

• USB powered – no separate power supply required

• Encrypted fingerprint data

• Latent print rejection

• Counterfeit finger rejection

• Rotation-invariant fingerprint capture

• Designed to work with dry, moist and rough fingerprints

• Rugged metal casing

• Visual capture feedback

• Compatible with DigitalPersona biometric SDKs

Typical Applications

Business & Enterprise

• Desktop user authentication

• Shared workstation authentication

• Employee identification

• Secure application access

Retail & POS

• POS user authentication

• Staff identification

• Operator login

• Biometric verification

Software Applications

• Custom biometric applications

• Identity verification systems

• Applications using compatible DigitalPersona SDKs

Specifications

Technology: Optical fingerprint scanning
Image Resolution: 500 dpi
Bit Depth: 8-bit grayscale (256 grey levels)
Capture Area: 14.6mm x 18.1mm
Interface: USB 2.0 Full-Speed
Connector: USB-A
USB Data Encryption: Proprietary 32-bit polynomial encryption with rolling key
Dimensions: 65 x 36 x 15.5mm
Weight: Approx. 95g
Power: 5V DC supplied via USB
Operating Temperature: 0°C to 40°C
Operating Humidity: 20–80% RH, non-condensing

Image Output Formats

• DigitalPersona Fingerprint Image

• ISO 19794-4:2005

• ANSI/INCITS 381-2004

• Uncompressed image mode (RAW)

• WSQ compressed

Software Compatibility

The DigitalPersona 4500 is compatible with DigitalPersona biometric SDKs supporting Windows, Linux and Android environments.

Please note: This product is a fingerprint capture device. Biometric authentication software or application integration may be required depending on your intended use.
