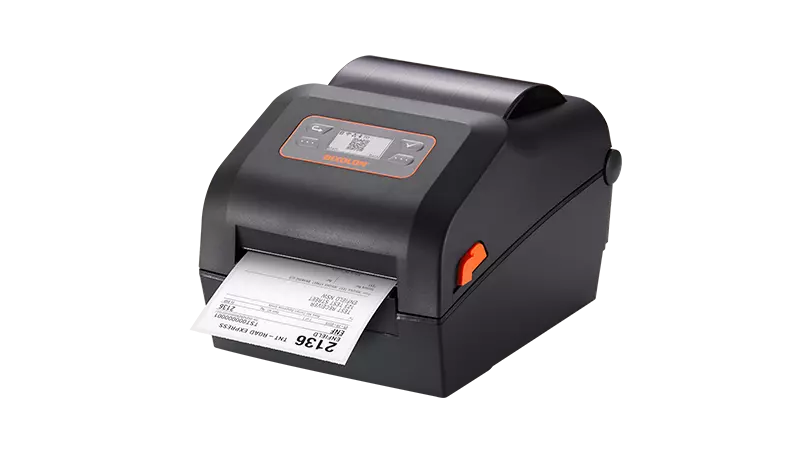

Bixolon XD5-40d Desktop Label Printer

Bixolon XD5-40d Direct Thermal Label Printer

The Bixolon XD5-40d is a high-performance 4-inch desktop label printer designed for fast and reliable label printing in retail, logistics, warehousing and other business environments.

Using direct thermal technology, the XD5-40d prints without ink or ribbons and delivers clear 203 dpi labels at speeds of up to 178mm/sec. Its flexible media handling and connectivity make it well suited to businesses requiring regular or higher-volume label printing.

Key Features

• Direct thermal printing – no ink or ribbon required

• Fast printing up to 178mm/sec

• 203 dpi print resolution

• Print width up to 108mm

• Supports media up to 118mm wide

• Easy paper loading

• Adjustable media guide and holder

• Supports roll and fan-fold media

• USB and USB Host connectivity

• Serial and Ethernet connectivity on applicable configuration

• Optional peeler and auto cutter

• Supports popular 1D and 2D barcodes including QR codes

• Compatible with popular label design software

Typical Applications

Retail

• Product and price labels

• Barcode labels

• Shelf and inventory labels

Logistics & Warehousing

• Shipping labels

• Inventory labels

• Carton and identification labels

Healthcare & General Business

• Identification labels

• Asset labels

• Tracking labels

• General-purpose label printing

Specifications

Print Method: Direct thermal
Print Speed: Up to 178mm/sec (7 ips)
Print Resolution: 203 dpi
Print Width: Up to 108mm
Print Length: Up to 1,000mm
Media Width: 15–118mm
Maximum Roll Diameter: 127mm
Media Thickness: 0.06–0.20mm
Media Types: Gap, Black Mark, Notch, Continuous and Fan-Fold
Memory: 64 MB SDRAM / 128 MB Flash
Connectivity: USB 2.0 + USB Host + Serial + Ethernet on applicable configuration
Optional Accessories: Peeler, Auto Cutter and External Paper Supply
Dimensions: 194 x 248 x 169mm
Weight: 1.89kg
Power: External 100–240V AC adaptor

Label Software & Compatibility

The XD5-40d is compatible with BIXOLON Label Artist and BarTender label design software. It supports common printer command languages including SLCS, ZPLII and EPL.

Please note: Connectivity and optional accessories can vary by configuration. Please check your required interface and label specifications before ordering.
